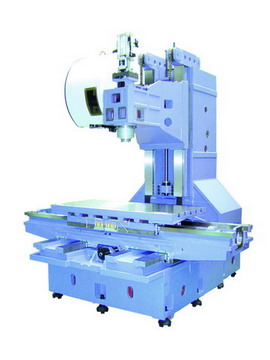

CNC Vertical Machining Center

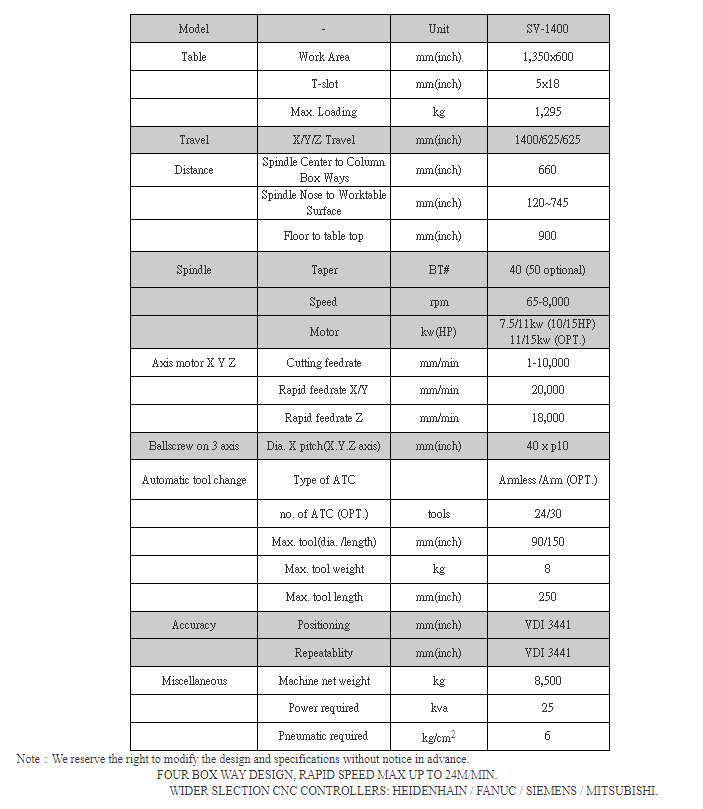

Model ID：SV-1400

＊Adopting German Standard VDI 3441.
＊Installing Euroscale Machine Frame.
＊Inverted-Y Column to extend support distance.

＊More 20 percent of weight (total weight 8.2 tons) than other similar machining centers.
＊30 percent of rigidity in the casting of machining center has been enhanced.
＊Adopting German Standard VDI 3441 & Euroscale Machine Frame.
＊Inverted-Y Column to extend support distance.
＊Saddle structure passes through 4 axes.
＊Super Four hard Boxways and A-shape box Base.
＊Column is constructed in the form of 米-shape to achieve strong rib.

STANDARD ACCESSORIES :

Automatic lubrication system
Air blast through spindle
Spindle air purge system
Screw type chip conveyor
Full splash guard
Rigid tapping
Auto power off
Heat exchanger in control box
Work lamp
3 color light
Tool box
Armless (Umbrella)
20T Type ACT (20 Tools)
Leveling bolts & blocks
Spindle oil cooler unit
RS-232 interface
Operational manual & electric drawing equipment
Remote manual pulse generator

OPTIONAL ACCESSORIES :

CE regulation
Coolant through spindle (CTS)
Adding 4th axis interface
CNC rotary table
Spindle BT40-10,000/12,000/15,000 pm
Spindle BT50-6,000/8,00/10,000 mm
Linear scale
Oil mist unit
Arm type ATC (24 tools, 30 tools)
Link type chip conveyor and bucket
ZF 2 speed gear box
Tool length measure mount
Work piece measurement
Transformer
