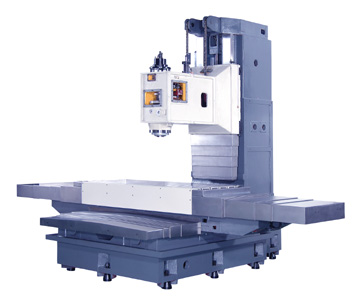

CNC Vertical Machining Center

CNC Vertical Machining Center

CNC Vertical Machining Center

Model ID：SV-1800

＊Adopting German Standard VDI 3441.
＊Installing Euroscale Machine Frame.
＊Large Support Distance to Column.

PREV NEXT

STANDARD ACCESSORIES :

Armless type tool changer
Full splash guard
Spindle air blast system
Heat exchange in control box
Spindle BT40-6,000rpm
Working light
Coolant pump
Operator indication lamp
Spindle arbor cleaning
Tool box

OPTIONAL ACCESSORIES :

Spindle automatic oiling device
Arm type tool changer
4th axis NC rotary table
Chip conveyor
Spindle speed 8,000/10,000pm
Direct couple spindle 10,000/12,000/15,0000pm
Built-in 16,000rpm
Optical scale
Transformer
PL waterproof fluorescent worklight
BED shower
