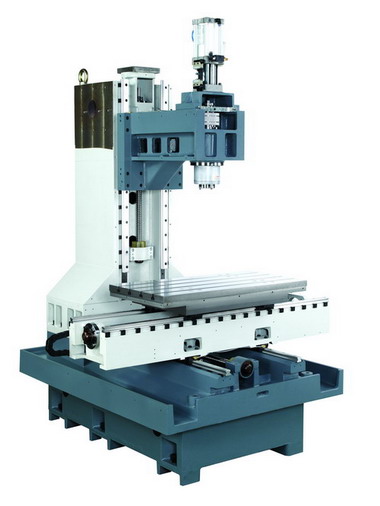

CNC Vertical Machining Center

CNC Vertical Machining Center

CNC Vertical Machining Center

Model ID：SVL-855

＊Adopting German Standard VDI 3441.
＊Installing Euroscale Machine Frame.
＊Inverted-Y Column to extend support distance.

PREV NEXT

STANDARD ACCESSORIES :

Armless (Carousel) type
Full-chip enclosures
Spindle air blast system
Heat exchange in control box
Spindle BT40-8,000rpm
Working light
Coolant pump
Operator indication lamp
Spindle arbor cleaning
Tool box

OPTIONAL ACCESSORIES :

Spindle automatic oiling device
Arm type tool changer
4th axis NC rotary table
Chip conveyor
Spindle speed 10,000/12,000rpm
Direct drive spindle 10,000/12,000/15,00000rpm
Built-in 16,000/24,00/30,000 rpm
Optical scale
Transformer
PL waterproof flucrescent worklight
BED shower
